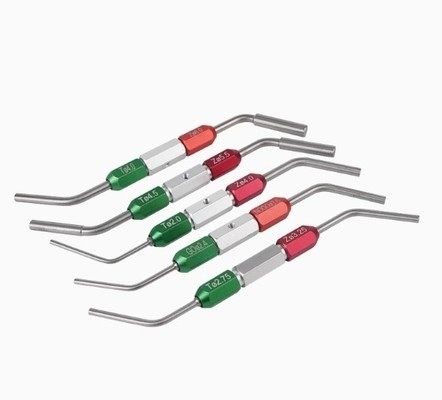

Wear Resistant Car Testing Tools Reversible Thread Plug Gages HRC 60-65

Wear-Resistant Go/No-Go Gauge High Carbon Surface Is Often Chrome Plated​


"Go/No-Go Gauge" is a commonly used precision measuring tool, mainly used to quickly determine whether the size of the workpiece is within the specified tolerance range.

Go/No-Go Gauge is a measuring tool used in pairs, consisting of two parts: "Go Gauge" and "No-Go Gauge".

1. Go Gauge: The size is designed to be the minimum limit size of the workpiece, used to check whether the workpiece is "small enough", that is, whether it can pass through the workpiece.
2. No-Go Gauge: The size is designed to be the maximum limit size of the workpiece, used to check whether the workpiece "does not exceed the maximum allowable value", that is, whether it can be blocked by the workpiece.


✅ Rapid Inspection

• Go End: Acceptable parts must pass smoothly.

• No-Go End: Acceptable parts must not pass, ensuring dimensions stay within tolerance.

✅ Precision & Durability

• Material: High-hardness tool steel (e.g., SKD11) or tungsten carbide, offering wear and corrosion resistance.

• Tolerance: ±0.001–0.005mm (higher precision available upon request).

✅ Versatile Designs

• Supports thread inspection (Thread Gauge), hole diameter checks (Plug Gauge), shaft diameter verification (Snap Gauge), and more.

• Custom non-standard sizes available for complex workpieces.

✅ Compliant with International Standards

• Manufactured per ISO 1502 (threads), ASME B89.1.5 (limit gauges), and other industry standards.

• Applications

• Production Line QC: High-speed screening of batch parts.

• Incoming Inspection (IQC): Supplier material acceptance.

• Mold Debugging: Validating machining dimensions.

• Technical Specifications,

• Parameter	Details
  Material	Tool Steel/Tungsten Carbide
  Hardness	HRC 60-65
  Accuracy Grade	IT6-IT8 (or custom)
  Operating Temp	-20°C ~ +80°C
  Surface Finish	Chrome Plating/Nitriding (optional)



  Why Choose Our Go/No-Go Gauges?


  Strict Calibration: Each gauge is CMM-verified before shipment, with calibration certificates included.

  Extended Lifespan: Wear-resistant design reduces replacement frequency.

  Expert Support: Technical consulting, custom solutions, and recalibration services.
