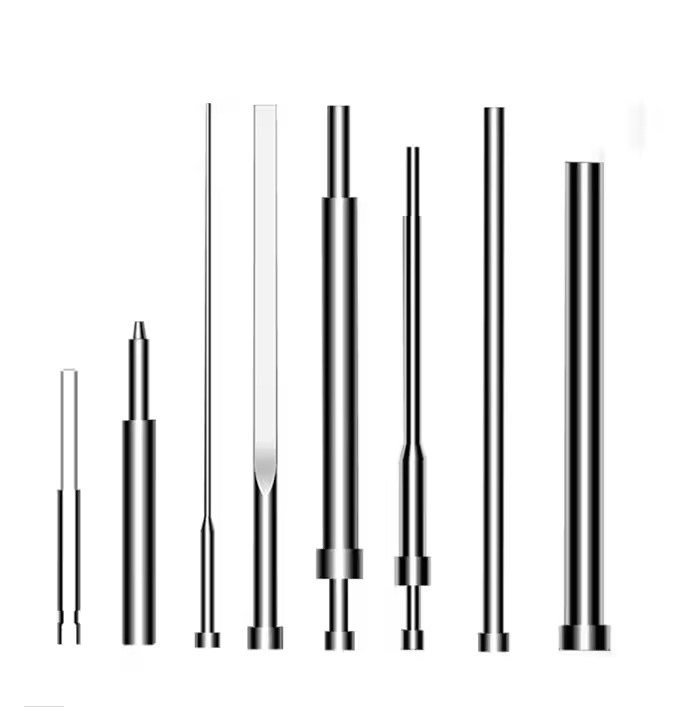

ODM Ejector Pin Molding Injection For Plastic Stepped Straight

Injection Mould Ejector Pins For Plastic Molde Stepped Straight For Ejector Pin Sleeve Pins SKH-51 SKD-61 Material


The shape of the ejector pin is generally composed of a straight rod part (sliding part) and a non-sliding part. The sliding part is inserted into the mounting hole of the core and moves due to friction during each injection, so high-precision machining and surface roughness treatment are required. The non-sliding part is matched with the shoulder part. The root of the shoulder part suddenly changes to a step shape, which is prone to stress concentration, so annealing is usually performed to release the stress.



Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2SUJ2S45Cect
Standard	Dayton,Lane,DINISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coatingetc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60-94)
Delivery time	3-5 Working days, depends on the quantity the order. Express byDHL, UPS,FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve. oilless bush, etc.
