SKD DMS Ejector Pins Plastic Mold Injection AISI H13 S316 Nak80 Material

Plastic Injection Mold Shaping Mode And Steel Product Material Skd Ejector Pin

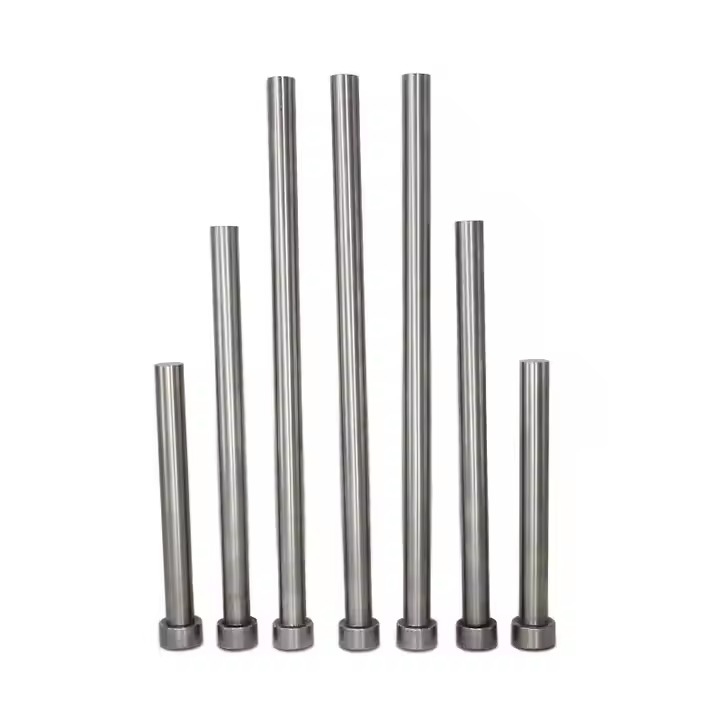

The ejector pin is a rod-shaped part installed in the ejection mechanism of the mold. The cross section is mostly circular (there are also special shapes such as square and rectangular). The molded workpiece is pushed out of the mold core or cavity by the driving force of the ejection system to complete the demoulding process.


Core functions:


Demolding function: Prevent the workpiece from being retained in the mold due to shrinkage, adhesion, etc., to ensure production efficiency.
Protect the mold and workpiece: Eject evenly to prevent deformation and damage of the workpiece, while reducing mold wear.



Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2SUJ2S45Cect
Standard	Dayton,Lane,DINISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coatingetc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60-94)
Delivery time	3-5 Working days, depends on the quantity the order. Express byDHL, UPS,FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve. oilless bush, etc.
