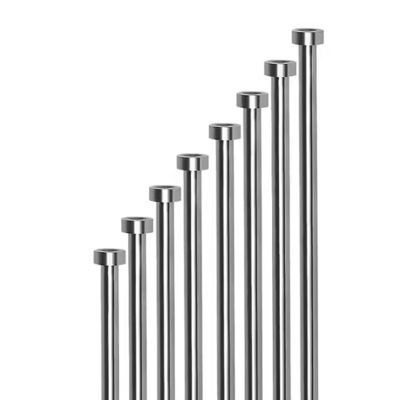

SKD61 DME Die Ejector Pins Sleeves Component For Mould Factory Thimbles

SKD61 Moulds Component Customized Air Ejector Pin For Mould Factory Thimbles

Ejector pins are a type of part used in molds, mainly used to push molded products out of the mold during the injection molding process. Ejector pins are usually installed in the cavity space, where they contact the molded product to ensure that the product can be demolded smoothly.

What quote do you need to provide ?

A:Pls aend us the drawings or samples of the product. The following details should be included:
1).Product specific size and tolerance requirements;
2).Materials;
3).Surface treatment;
4).Quantiy;
5).Other special requirements.

Product Name	Ejector Pin	Material	SKD-61, SKH-51, HSS, SUJ2...
Type	Stamping Die	Hardness	HRC58-60
Specification	Standard or Customized	Advantage	High internal toughness, not easy to break under impact
Application	Hardware stamping molds, die-casting molds, plastic molds, mechanical automation equipment, etc.



Product information, please consult for details
Product Name	Ejector pin/Straight/Shoulder/Core pins/Ejector Blades/Black ejector pin
Material	SKD61,SKH51,HSS,M2,H13,L2,SKS21,1.2344 Alloyed Steel,Tool Steel,Premium Hot Work Steel,
Withstand temperature	100oC-200oC, 600oC, 1000oC
Standard size:	L: 100mm-1000mm, D: 1mm-35mm
what can be customized:	Custom Flats, Relief Grooves, Special Coatings, Customer specified corner radius
Heads can be annealed for machining or blackened
Tolerance of .0003” on the diameter
2 to 5 micro-inch finish is standard - eliminating galling
