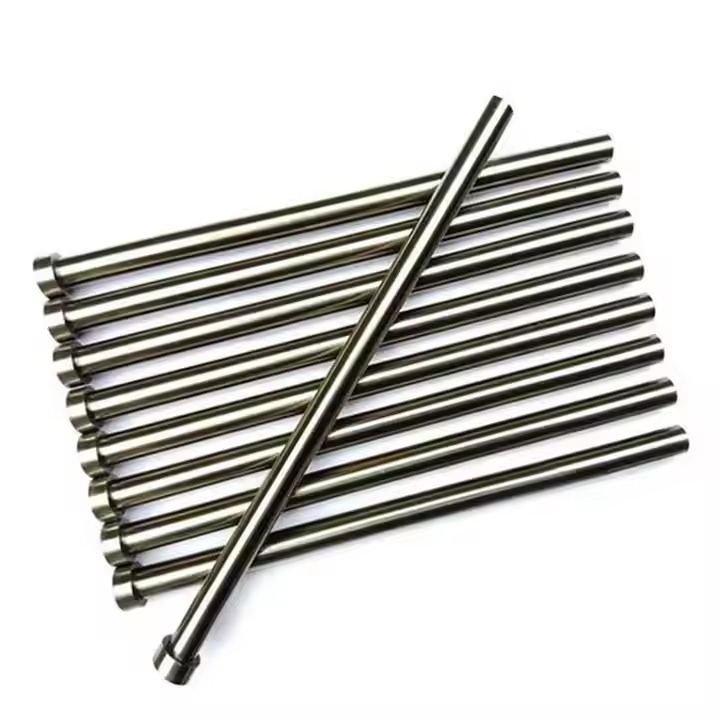

Injection Mould DME dMS Nitrided Ejector Pins Plastic Mold Stepped Straight

For Injection Mould Dme Ejector Pins Plastic Molde Stepped Straight

We focus on precision machining of multi-cavity mold components, including plastic mold cavities, core pins, inserts, movable core assemblies, and automotive die-casting mold cores and inserts. Our products are primarily used in precision packaging molds for industries such as daily-use packaging, cosmetics packaging, medical consumables and packaging, as well as automotive, electronics, and automation.

The ejector pin is a part used in the mold. Its main function is to push the cooled and solidified plastic part out of the mold cavity after the injection molding process is completed. When the mold is opened, the ejector pin cooperates with the ejection mechanism of the injection molding machine to move along the axial direction, exerting a thrust on the plastic part to make it leave the mold for subsequent removal and processing procedures, thereby improving the efficiency and automation of the injection molding process.

Product Name	Ejector Pin	Material	SKD-61, SKH-51, HSS, SUJ2...
Type	Stamping Die	Hardness	HRC58-60
Specification	Standard or Customized	Advantage	High internal toughness, not easy to break under impact
Application	Hardware stamping molds, die-casting molds, plastic molds, mechanical automation equipment, etc.



Product information, please consult for details
Product Name	Ejector pin/Straight/Shoulder/Core pins/Ejector Blades/Black ejector pin
Material	SKD61,SKH51,HSS,M2,H13,L2,SKS21,1.2344 Alloyed Steel,Tool Steel,Premium Hot Work Steel,
Withstand temperature	100oC-200oC, 600oC, 1000oC
Standard size:	L: 100mm-1000mm, D: 1mm-35mm
what can be customized:	Custom Flats, Relief Grooves, Special Coatings, Customer specified corner radius
Heads can be annealed for machining or blackened
Tolerance of .0003” on the diameter
2 to 5 micro-inch finish is standard - eliminating galling
